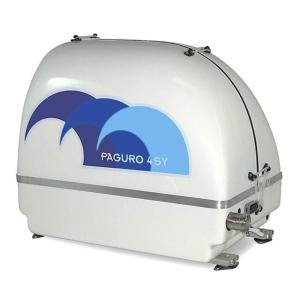

Elverk Paguro 4 SY - 899 63005

PAGURO 4 SY - 4 KVA 3.5 KW
With Yanmar engine and with its water-cooled alternator, it's one of the most silenced generator in the marine market. Due to the dual shock-absorbers system, the vibrations are reduced to a minimum level. All the parts getting in touch with the sea-water are in stainless steel 316 L.

ALTERNATOR
Synchronous, brushless, capacitor regulation. Water-cooled through a water jacket made in stainless steel AISI 316 L. Battery charger for dedicated starting battery (12 V 8 A). Insulation Class H.

ENGINE
Diesel fueled. 1 cylinder.
Four cycle. Heat exchanger water/air made in stainless steel

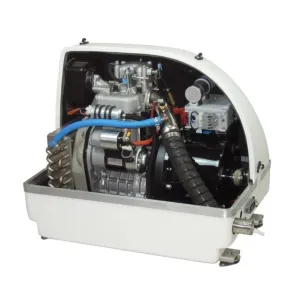

SOUNDPROOF CAPSULE
Soundproof capsule made from multilayer GRP, a high density sound absorbing material and heat insulating foam lining.
Split into two halves, the capsule lids enable easy of access for servicing, even in tight spaces.
Dual anti-vibration system based on 4 internal soft shock absorbers and 4 film captive engine mounts outside the capsule.
SPECIFICATIONS
ALTERNATOR
CONTINUOUS ELECTRICAL POWER KVA 4.0
CONTINUOUS ELECTRICAL POWER KW 3.5
VOLTAGE OUTPUT (V) 230
FREQUENCY (Hz)
50
NUMBER OF PHASES
1
PEAK CURRENT 45 A

ENGINE
ENGINE MANUFACTURER
YANMAR
ENGINE MODEL
L70
CYLINDERS NR. 1
DISPLACEMENT (cm3) 320
STARTING AND SHUT-OFF SYSTEM 12 V ELECTRICAL STARTER

GENERAL SPECIFICATIONS
DIMENSIONS (mm)
615 X 429 X 525h
WEIGHT (CAPSULE INCLUDED) (kg) 90
NOISE LEVEL dB(A) 7 mt 54 dB(A)
